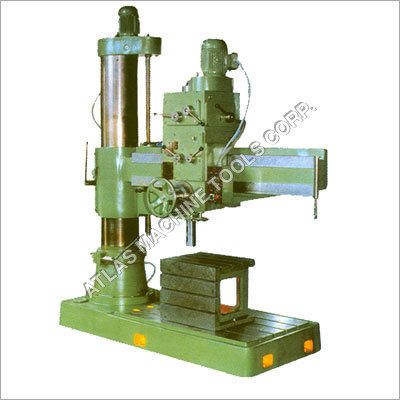

Radial Drilling Machines

Radial Drilling Machines
Radial Drilling Machines
Product Code : 19
Product Description

Radial Drilling Machines

We are a an established manufacturer and supplier of finest quality Radial Drilling Machines. This machine is designed as per the requirements of modern industries. We use high grade raw materials that are sourced from trusted supplier for making them. For precision drilling, this array of machines is best suited. We provide customization facility also. Radial Drilling Machines are available with below given specifications.

Specifications

Model No.

AMTC-32

AMTC-40

AMTC-50A

AMTC-508

AMTC-50C

AMTC-65

AMTC-75

Drill Head

Drilling Capacity (in Steel/ Cast Iron)

32/40

40/50

50/60

50/60

50/60

65/75

75/85

Drilling Depth

140

180

225

225

220

325

355

Taper Spindle Nose Socket

MT-3

MT-4

MT-5

MT-5

MT-5

MT-5

MT-6

No. of Spindle Speeds & Range (RPM)

6(72-1000)

6(55-665)

9(45-695)

9(45-695)

12(45-1000)

12(18-810)

12(18-810)

No. of Spindle Feeds & Range (mm/rev.)

2(0.1 & 0.2)

30(0.1 to 0.2)

3(0.1 to 0.2)

3(0.1 to 0.2)

3(0.1 to 0.2)

6(0.125 to 1.25)

6(0.125 to 125)

Drill Power

1.5 Kw.

1.5 Kw.

2.2 Kw.

2.2 Kw.

3.7 Kw.

3.7 Kw.

5.5 Kw.

Capacity

Drilling Radius

Maximum

750

1050

1100

1100

1300

1700

1900

Minimum

350

375

450

450

450

500

600

Drilling Head Transverse

400

675

650

650

850

1200

1200

Distance Base Plate to Spindle


Maximum (P)

835

1000

1300

1300

1500

1500

1750

Minimum (M)

275

225

225

225

300

300

200

Diameter of Column Sleeve (D)

190

255

310

310

310

355

405

Working Surface of Base Plate

Length x Width

750x650

900x680

920x830

920x830

1120x830

1500x1020

1625x900

Other Details

Arm Elevating Motor

0.75 Kw

0.75 Kw

1.5 Kw.

1.5 Kw.

1.5 Kw

2.2 Kw

3.7 Kw.

Standard Box Table (mm)

400x350x350

400x350x350

550x420x420

550x420x420

550x420x420

600x500x500

600x500x500

Approximate Weight of Machine

1100 Kgs.

1700 Kgs.

3000 Kgs.

3000 Kgs.

3500 Kgs.

4800 Kgs.

6500 Kgs.


Standard Accessories
  • Electric Motors AC/400/440 Volts
  • Panel Board for Centralized Electrical controls and limit Switches
  • Complete with fittings
  • Set of Foundation Bolt
  • Instruction Manual,
  • Spare Part List & Tool Box
Extra Accessories
  • Machine Vice
  • Boring Attachment
  • Tapping Attachment
  • Drill Chuck
  • Socket & Sleeves & Tilting Table
  • Square Box Table
  • Electrical Coolant System
  • Machine Lamp
