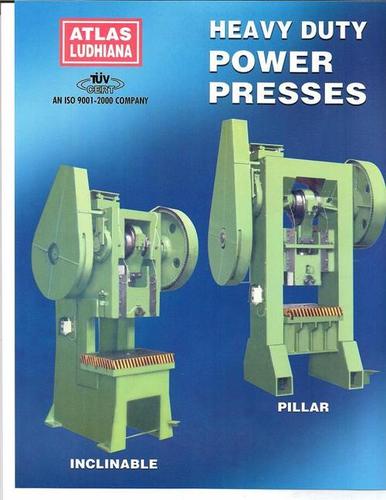

Inclinable Press

Inclinable Press
Inclinable Press
Product Code : 02
Product Description

Inclinable Press

Our advanced manufacturing unit is capable of fabricating finest quality machines that offer superior performance in almost all industrial environments. We are a leading manufacturer of Inclinable Press which is suitable for punching, notching and stamping steel materials of various thicknesses. Automatic and easy to use Inclinable Press will certainly impress by its performance. We offer customization in terms of sizes, specifications etc. Some important dimensional characteristics of Inclinable Press are given below.

Maximum Pressure

10 Tons

20 Tons

30 Tons

50 Tons

75 Tons

100 Tons

150 Tons

Stroke

50 mm

62 mm

75 mm

87 mm

100 mm

112 mm

150 mm

Length of Bed

483

550

660

750

813

940

1016

Width of Bed

330

362

406

508

546

686

737

Opening in Bed

114

114

127

152

178

216

254

Bolster Plate Thickness

64

65

76

76

89

102

102

Bed to Ram Bottom

235

275

330

432

470

597

635

Hole in Ram for Punch - Dia

38

38

51

51

51

79

79

Adjustment Ram

19

19

25

32

32

32

32

Section of V Belts

B

B

B

B

B

C

C

No. of V Belts

3

2

2

2

4

4

4

No. of Strokes per - minute

76

70

60

55

40

35

30

Electric Motor (1440 RPM)

2 HP

3 HP

3 HP

5 HP

7.5 HP

10 HP

15 HP

Gross Weight

850 Kgs.

1200 Kgs.

1800 Kgs.

2700 Kgs.

3200 Kgs.

4800 Kgs.

6200 Kgs.


Standard Accessories
  • Motor Pulley
  • Wheel Guard
  • Gear Guard
  • Special Steel Spanner for adjustment to lock Nutt
  • Hand operated oil lubrication Pump
  • Bolster plate duly machined having T-Slots
Extra Accessories
  • Suitable Electric Motor 3 Phase
  • Dol Starter
  • Set of V-Belts
