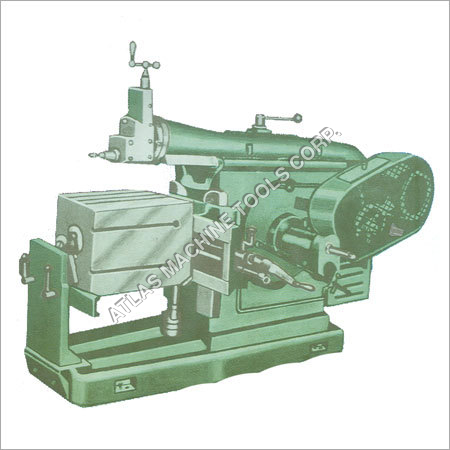

Cone Pulley Drive Shaping Machines

Cone Pulley Drive Shaping Machines
Cone Pulley Drive Shaping Machines
Product Code : 16
Product Description

Cone Pulley Drive Shaping Machines

We are a well known manufacturer and exporter of high quality industrial machines that offer better performance in any conditions. Cone Pulley Drive Shaping Machines, offered by us, are capable of performing as per industrial standards. For fabricating these machines all industrial norms are stringently followed. We ensure durability and flawlessness of Drive Shaping Machines before procurement. Important technical features of Cone Pulley Drive Shaping Machines are given below.

Technical Features

  • Duly seasoned alloyed high duty castings.
  • Sturdy construction to ensure vibration-free working.
  • Ram alignment with taper jib strip.
  • Extensive lubrication arrangements.
  • Alloy steels shafts.
  • All Alignments maintained as per geometric alignment test IS: 2310-1963.
  • Universal/fixed table with variable automatic feeds on horizontal traverse.
  • Expanding ring type clutch drive in all-geared machines to eliminate slippage.
  • Graduate tool slide swivelling 90 degrees either way.
  • Interchangeability of parts ensured through standardisation and quality control.
  • Accuracy and performance guaranteed.

Standard Accessories

  • Swivelling vice
  • Allen Key set.
  • V-Belts
  • Crank Handle
  • Spanner Set
  • Screw Driver
  • Oil Can
  • Motor Pulley
  • Tool Box

Extra Accessories

  • Electric Motor
  • Dol Starter
  • Key Way Cutting Attachment
  • Automatic Tool lifting device.
  • Automatic feed to the tool slide.
  • Automatic lubricating pump.
  • Rapid Feed System with Control Panel.

Technical Specifications

Model

AMTC-12

AMTC-18

AMTC-24

AMTC-30

AMTC-36

AMTC-42

A-Capacity

12"

18"

24"

30"

36"

42"

Length of Ram Stroke

305mm

457mm

610mm

762mm

915mm

1070mm

Length of Ram

711

991

1232

1474

1651

2108

Length of Width of Ram Bearing

724x203

686x273

867x30

975x325

1130x300

1600x330

Max. & Min Distance from table of Ram

257x41

381x83

508x76

610x102

525x102

530x102

B-Table

Working Surface of Table

305x228

457x305

610x356

762x406

915x457

196x533

Max. Table Travel Horizontal

330

483

635

787

860

1050

Max. Table Travel Vertical

140

305

406

483

525

455

Angular Movement of Table on either sides

60 L 60 R

60 L 60 R

60 L 60 R

60 L 60 R

60 L 60 R

60 L 60 R

C-Tool Head

(Max. Vertical Travel of Tool Slide)

140

152

204

203

225

300

Maximum Swivel of Tool Head

60 L 60 R

60 L 60 R

60 L 60 R

60 L 60 R

60 L 60 R

60 L 60 R

D-Speed & Feeds

Range of Ram Speeds

3

4

4

4

4

4

Stroke per Minute

30, 60, 90

16, 32, 64, 96

12, 24, 48, 72

8, 16, 32, 48

10, 20, 30, 50, 88

8, 16, 32, 48, 88

Dia of Motor Pulley

51

70

70

76

88

88

Range of Tool Head Feed

Hand Feed

Hand Feed

Hand Feed

Hand Feed

Hand Feed

Hand Feed

Automatic Tool Head Feed & Tool Lifting

On Order

On Order

On Order

On Order

On Order

On Order

E-Drive Electrical Equipments

Power Supply

1 HP (.75kw)

2 HP (1.5kw)

3 HP (2.25kw)

5 HP (3.75kw)

7.5 HP (5kw)

10 HP (7.5kw)

Speed RPM

1440 RPM

1440 RPM

1440 RPM

960 RPM

960 RPM

960 RPM

F-Overall Dimensions & Weight

Length

1219

1580

1981

2150

2500

2875

Width

762

948

1092

1219

1350

1500

Height

1371

1400

1600

1550

1700

1850

Weight (Approx.)

450 kgs

110 Kgs.

1800Kgs.

2100kgs.

3000Kgs.

3500Kgs.

Note: Technical Specifications and illustrations are subject to change without prior notice.
